Toyota Prado KDSS Disabling

To disable KDSS on 150 series Prado:

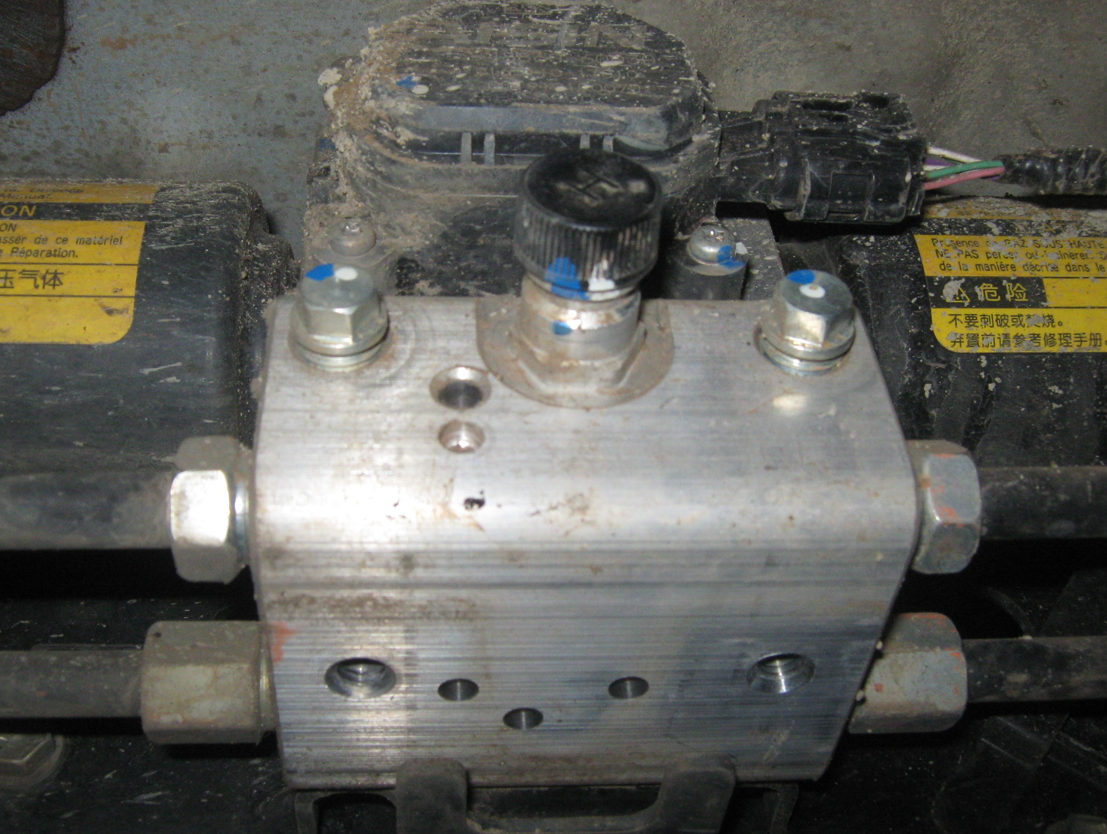

1. Remove cover from control unit on the Passenger side front chassis rail. Under the cover is 2 chrome 10 mm bolts.

2. With the vehicle at ride height undo the 2 bolts ONLY 2.5 turns each, this will allow the sway bars to move

NOTE: To reset tighten the 2 bolts at ride height back 2.5 turns.
