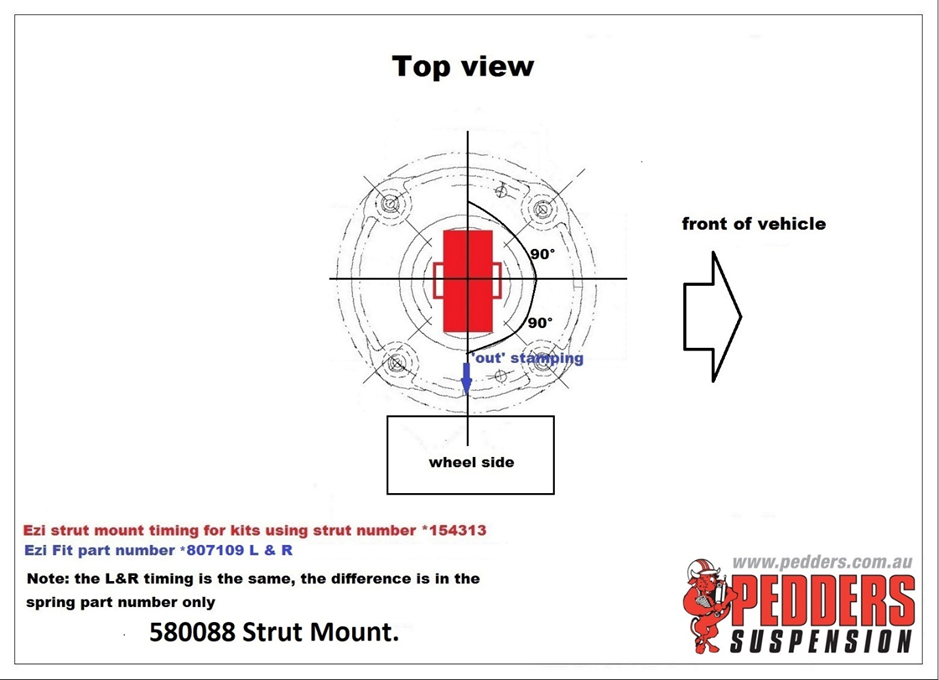

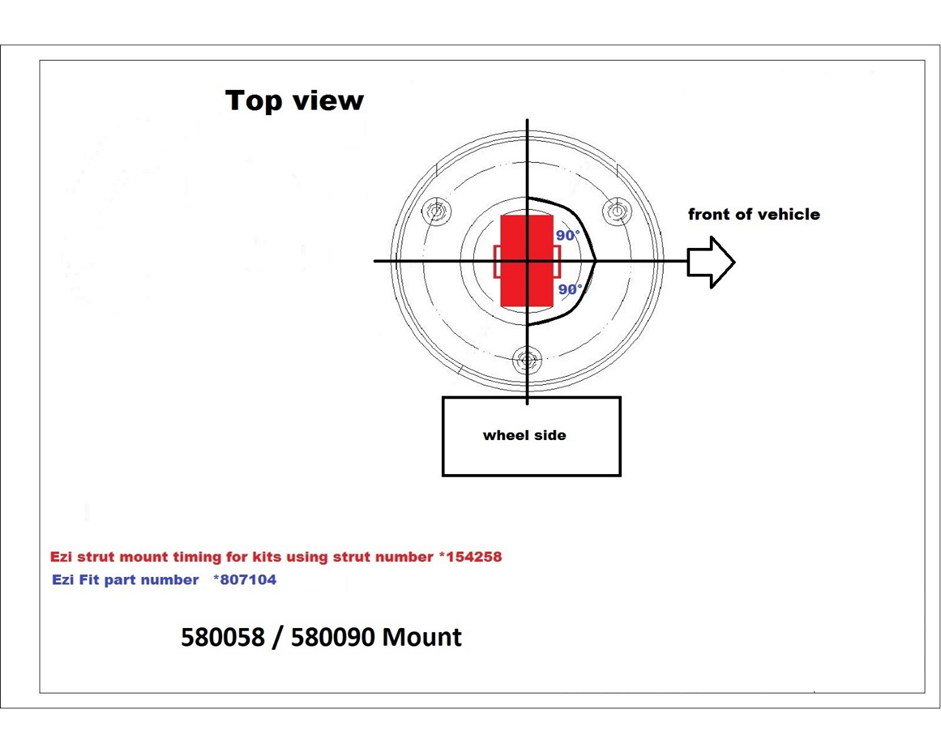

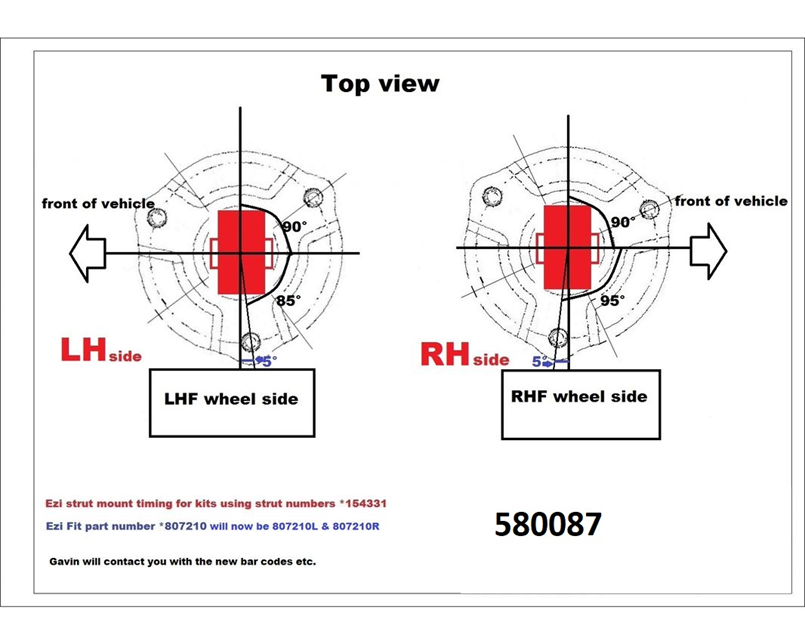

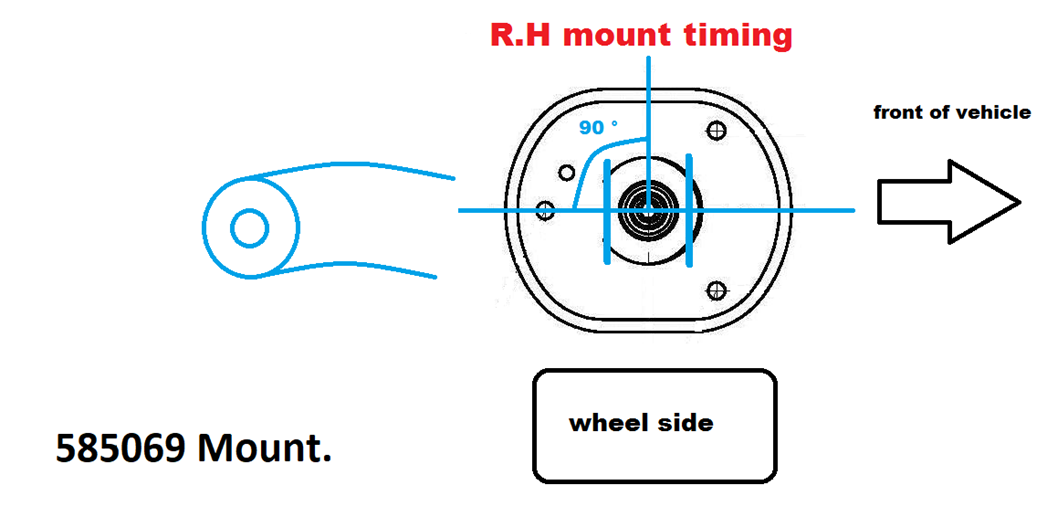

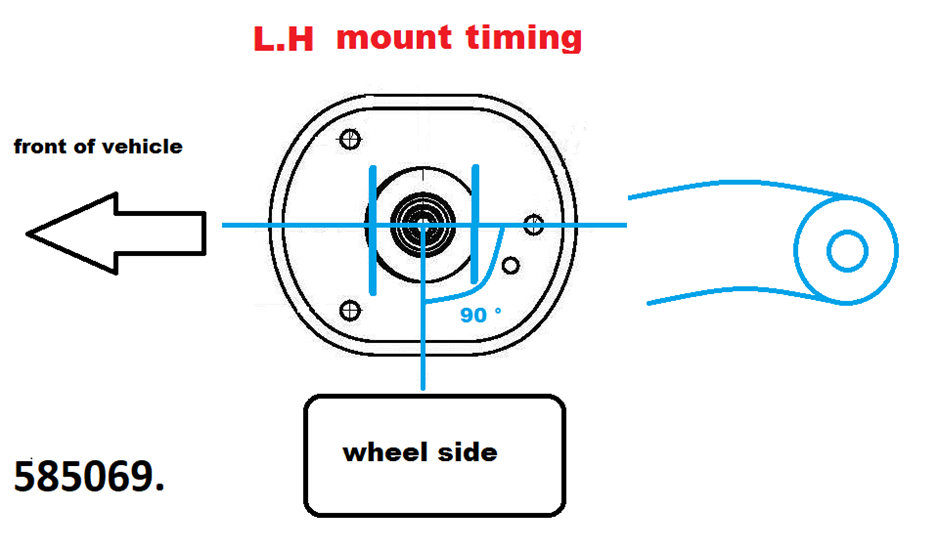

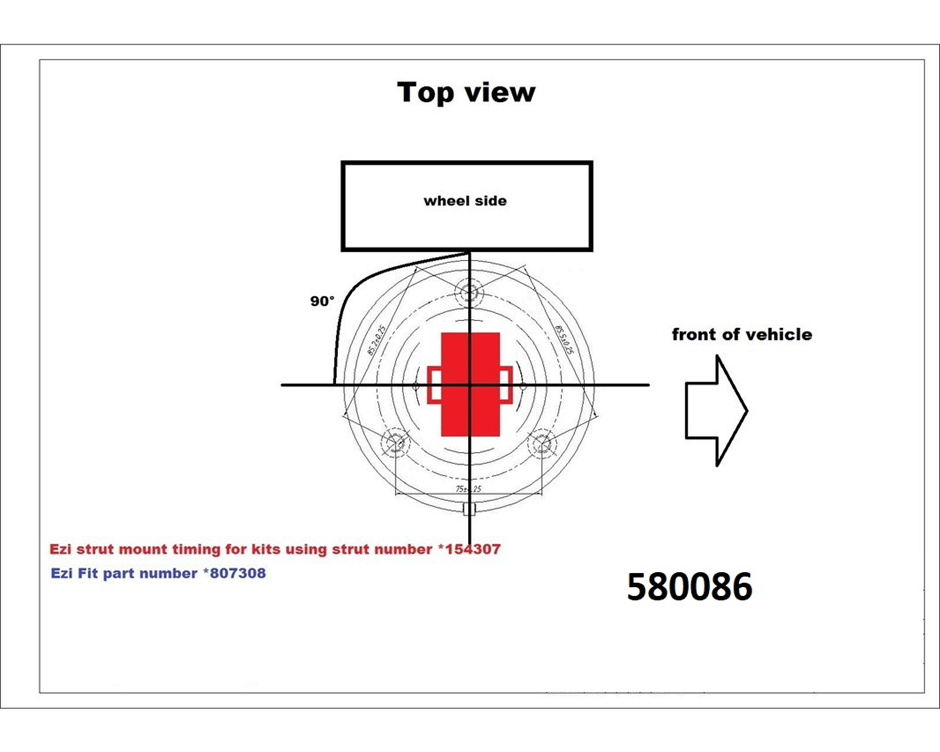

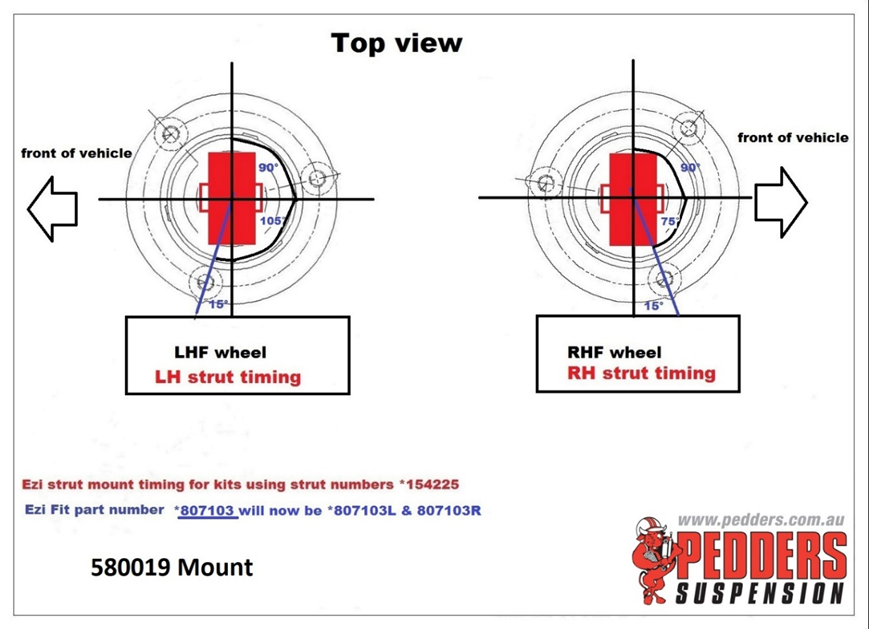

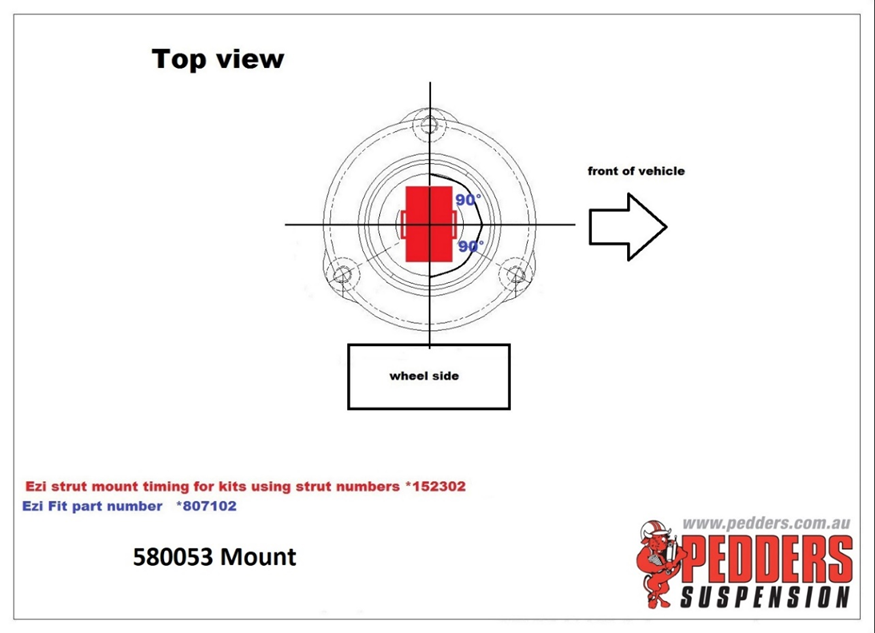

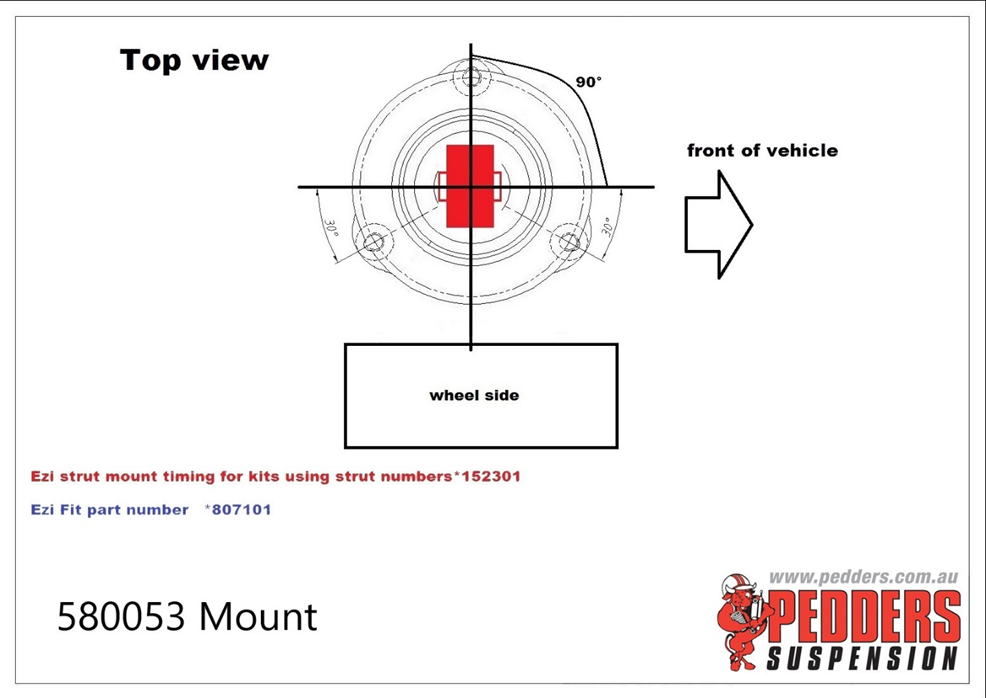

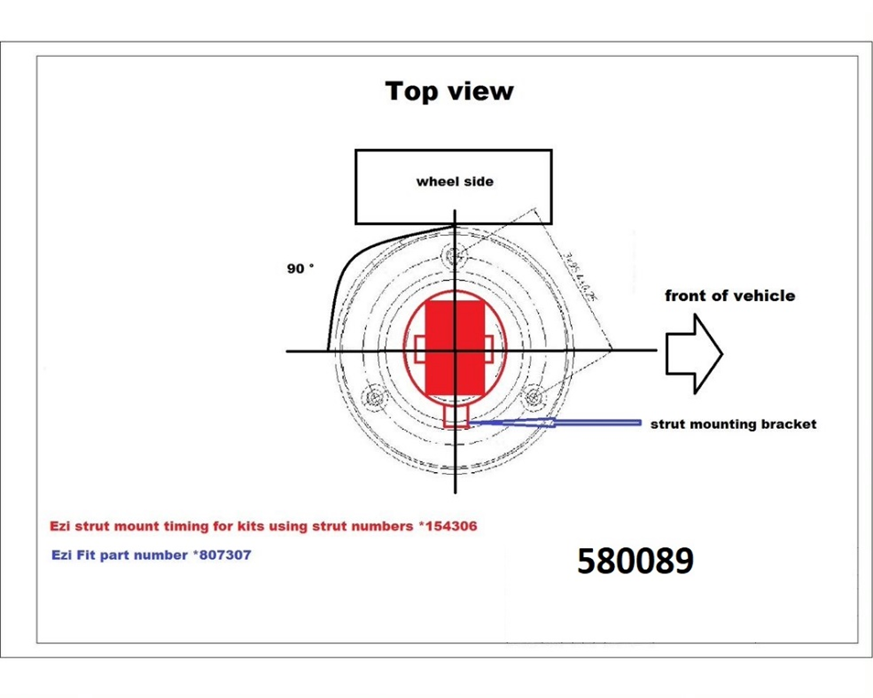

Strut Mount Timing For Pedders EZI-Fit Struts

This knowledge base article draws attention to the correct strut mount timing On Pedders EZI-Fit Struts.
